Image Sensor |
1/2.4" Progressive Scan CMOS |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Wide Dynamic Range |
120 dB |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Focal Length & FOV |
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° |
DORI |
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m |
Lens Mount |
M12 |
Max. Resolution |
3200 x 1800 |
Camera Material |
Metal & Plastic |

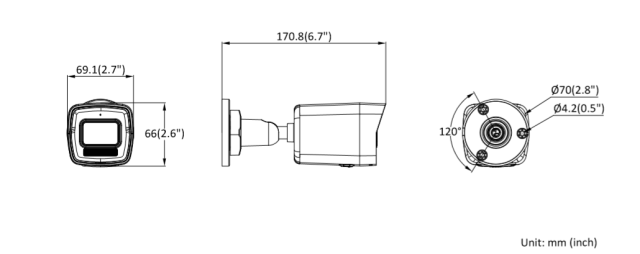

Camera Dimension |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
Camera Weight |
Approx. 285 g (0.6 lb.) |
Power Interface |
12 VDC ± 25%, 0.41 A, max. 5 W,Ø 5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
Protection |
IP67: IEC 60529-2013 |
